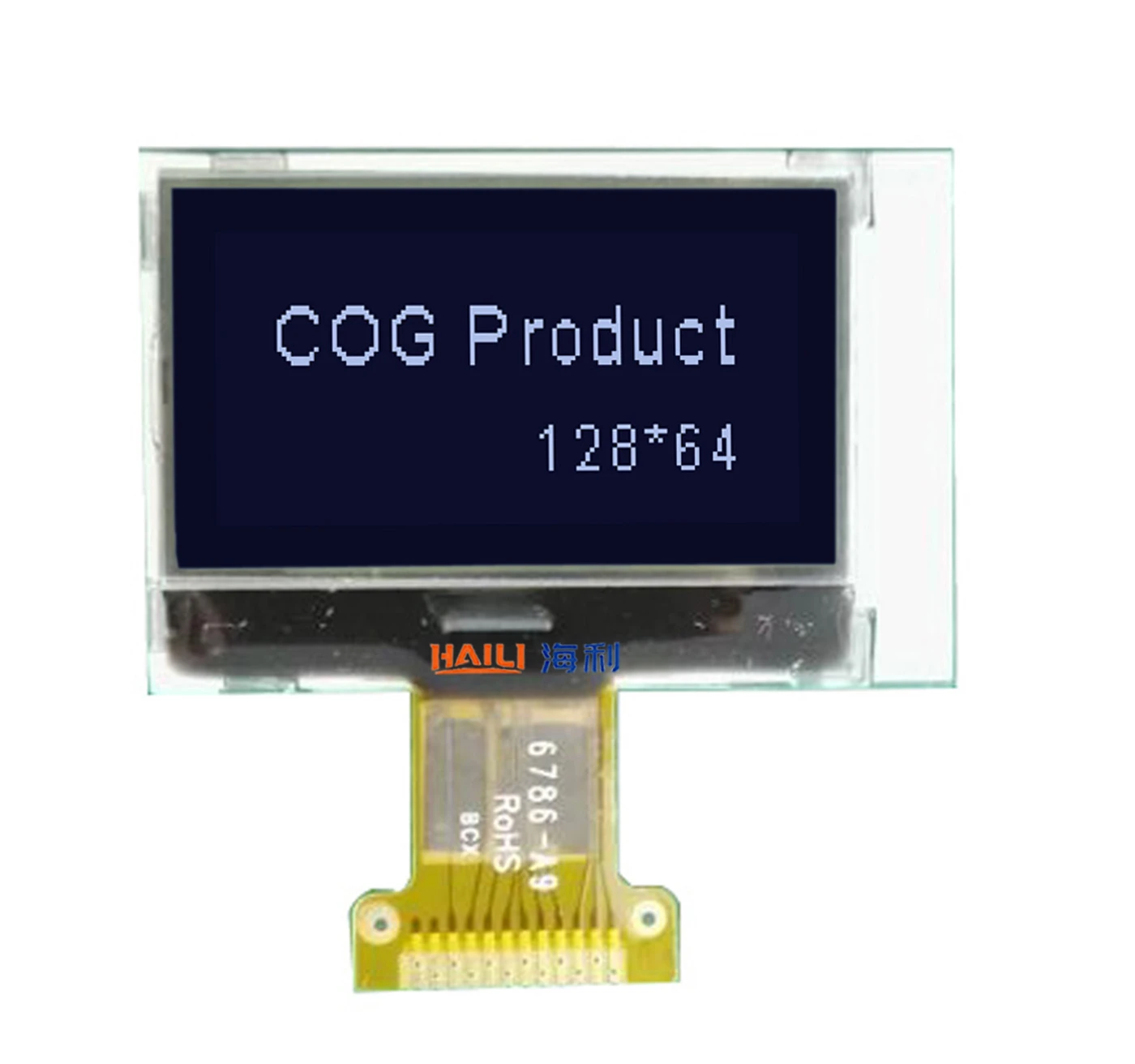

128x64 Dots Matrix COG Grahic LCD Display Module
The 128x64 graphic LCD display modules comply with RoHS standards. These monochrome modules feature a white edge LED backlight to meet various requirements. The display mode is FSTN, transflective, and positive.
Description
128*64 dots matrix COG lcd display,1.2 inch Graphic LCD display
The 128x64 graphic LCD display modules comply with RoHS standards. These monochrome modules feature a white edge LED backlight to meet various requirements. The display mode is FSTN, transflective, and positive. The operating temperature ranges from -20℃ to 70℃, and the storage temperature ranges from -30℃ to 80℃. With a 6:00 viewing angle, users can view images and videos clearly from any angle.
The dot matrix graphic LCD display consists of an LCD, connectors, control and drive circuits, a PCB, and a backlight. The dots are arranged continuously without gaps between rows and columns, allowing for the display of seamless graphics and characters.
Parameters
|
Item |
1.2 inch Graphic LCD display |
|
Resolution |
128*64 |
|
Outline Size |
31.0 x 22.5x 1.7 mm |
|
Active Area |
29.0 x 16.35 mm |
|
Operating Voltage |
3V |
|
Driving method |
1/65duty |
|
Controller |
ST7567 |
|
Viewing direction |
6 O'clock |
|
Display Mode |
Positive |
|
Display Type |
Transflective |
|
LCD Type |
FSTN |
|
Connector |
COG +FPC |
|
Operating Temperature |
-20~70 ºC |
|
Storage Temperature |
-30~80 ºC |
|
Specification |
RoHS SGS |
COG LCD display design drawing
1.2 inch Graphic LCD display,St7567 LCD Controller Monochrome 128*64 dots matrix COG lcd display
