3.4 Inch TFT LCD Display
Resolution: 800*800
Outline Size: 94.9*96.95*2.22 mm
Active Area: 70.13*70.13 mm
Operating Voltage: 5 V
Description

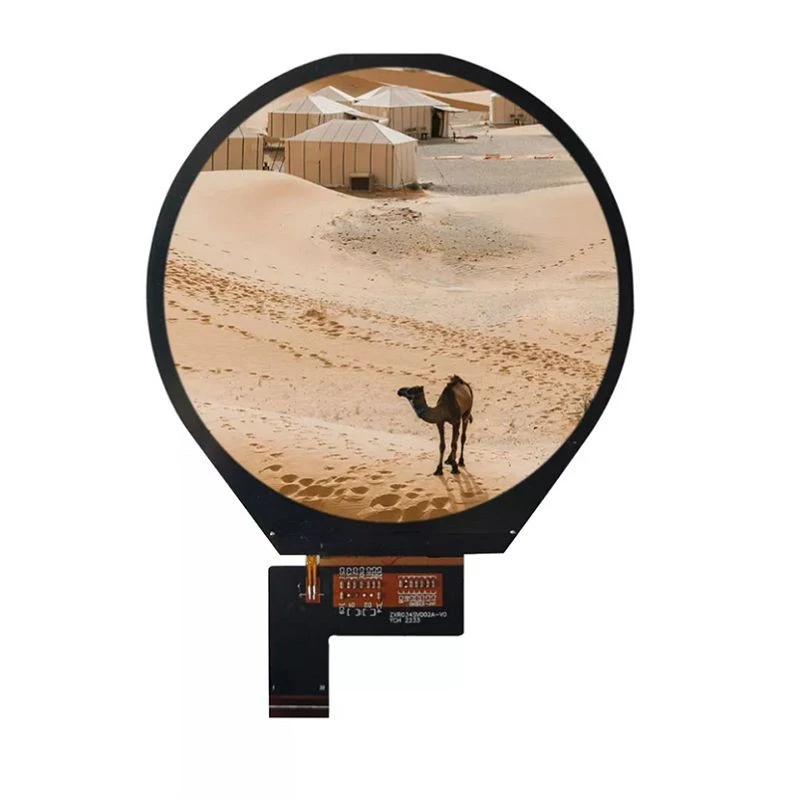

3.4 inch 800*800 Resolution Round TFT LCD Display
Product Parameters
|
Item |
3.4 inch TFT LCD display |
|
Resolution |
800*800 |
|
Outline Size |
94.9*96.95*2.22 mm |
|
Active Area |
70.13*70.13 mm |
|
Operating Voltage |
5 V |
|
Controller |
JD9365DA |
|
Viewing direction |
12 o'clock |
|
Interface |
MIPI |
|
Display Technology |
TFT |
|
Operating Temperature |
-20 to 70ºC |
|
Storage Temperature |
-30 to 80ºC |
Basic Information
|
Model NO. |
HL034A |
|
LCD Drive Mode |
Static Drive LCD Module |
|
Customized |
Non-Customized |
|
Viewing Angle |
12 O′clock |
|
Backlight |
White LED *8 |
|
Surface Treatment |
Anti-Glare |
|
Color Arrangement |
RGB-Stripe |
|
Connector |
FPC |
|
Transport Package |
Carton/Pallet |
|
Specification |
3.2 inch |
|
Certificate |
Rohs |
|
Origin |
China |
|
HS Code |
9013803010 |
|
Production Capacity |
1000000 PC/Year |

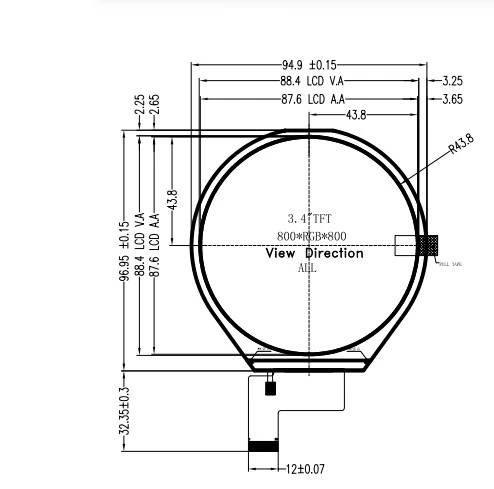

3.4 inch TFT LCD product design drawing:
Product Features
* Display high-quality images with exceptional clarity and brightness
* Rich and vibrant colors
* Makeing it ideal for various uses
Advantages
* Wide viewing angle
* Adhere to strict environmental and safety standards
* Impressive display quality
Applications
The 3.4 inch TFT LCD screen can be used in various field, such as the electronic equipment, digital products, medical instruments, industrial equipment etc.
TFT Display Standard Size
TFT LCD display Packaging and Shipping
We use the full protective package for the TFT LCD display to protect the TFT LCD display from the damages of collision or extrusion.
Plastic bag+foam/card box +standard carton
