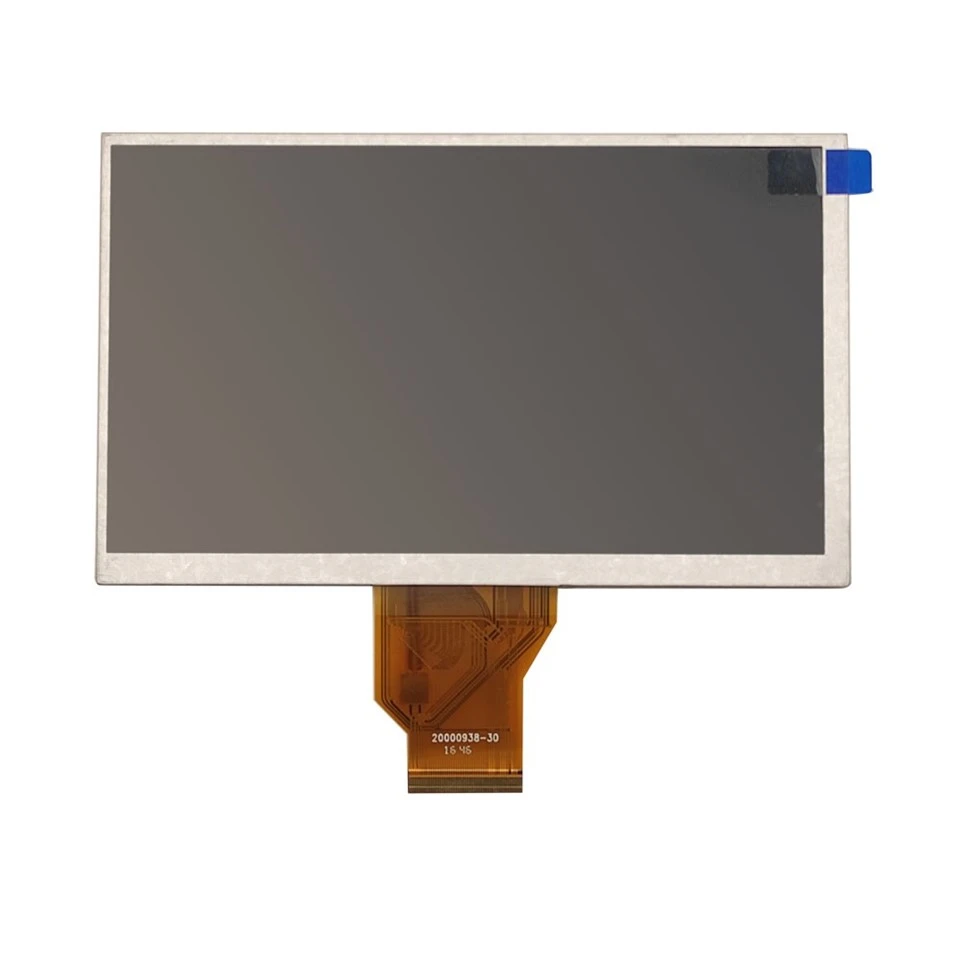

7 Inch TFT LCD Display
Resolution: 1024*600
Outline Size: 164.90*99.95*3.5mm
Active Area: 154.21*85.92 mm
Operating Voltage: 3.3 V
Description
7 inch 1024X600 resolution Lvds High Luminance TFT LCD Display
Product Parameters
|
Item |
7.0 inch TFT LCD display |
|
Resolution |
1024*600 |
|
Outline Size |
164.90*99.95*3.5mm |
|
Active Area |
154.21*85.92 mm |
|
Viewing Area |
154.21*85.92mm |
|
Operating Voltage |
3.3V |
|
Controller |
EK79001HN |
|
Viewing direction |
12 o'clock |
|
Interface |
RGB 24bit |
|
Display Technology |
TFT |
|
Operating Temperature |
-20 to 70ºC |
|
Storage Temperature |
-30 to 80ºC |
Basic Information
|
Model NO. |
HL070A |
|
LCD Drive Mode |
Static Drive LCD Module |
|
Customized |
Non-Customized |
|
Viewing Angle |
12 O′clock |
|
Backlight |
White LED *27 |
|
Surface Treatment |
Anti-Glare |
|
Color Arrangement |
RGB-Stripe |
|
Connector |
FPC |
|
Transport Package |
Carton/Pallet |
|
Specification |
7.0 inch |
|
Certificate |
Rohs |
|
Origin |
China |
|
HS Code |
9013803010 |
|
Production Capacity |
1000000 PC/Year |
7.0 TFT LCD display product design drawing:
TFT Display
Certificate
We have a complete quality management system and have passed ISO9001:2015, ISO14001 , IATF16949 , SGS, and other certifications.
Hornor
High-tech enterprise and the small giant enterprise specailizing in specialty and novelty in Hunan Provinice.
Patents
We have 4 Invention Patents , and 41 Practical invention Patent.
Our partner
After nearly 25 years of development and unremitting efforts, we have accumulated a large number of high-quality customer recognition and support. Including Gree, Midea,TCL,Mestek, etc.
