Segment LCD Display for Power Meter
The Monochrome STN Negative Segment LCD Display is designed for power meter applications, offering superior visibility, durability, and performance in a sleek, modern format.
Description
Custom Monochrome STN 7 Segment lcd display for power meter, Positive Transflective lcd screen with zebra connector
The Monochrome STN Negative Segment LCD Display is designed for power meter applications, offering superior visibility, durability, and performance in a sleek, modern format.
Product Features
STN Technology:
- Sharp contrast with dark background and bright segments for clear readability.
- Wide viewing angle for optimal display in various positions
Negative Mode: High contrast and modern aesthetic, ideal for advanced meter interfaces.
Customizable Design:Segment sizes, layouts, and additional features tailored to specific requirements.
Reliable Performance:
- Operates consistently in diverse environmental conditions.
- Low power consumption for energy efficiency.
Applications
Power Meters ,Electricity Meters , Energy meter , Energy Management Systems
This display provides the ideal combination of functionality and aesthetic appeal, making it an excellent choice for modern power metering solutions.
product parameter
|
LCD Type |
STN |
|
Display Type |
Positive |
|
Display Mode |
Transflective |
|
View Angle |
6 o'clock |
|
Active Area |
71.3*64.3cm |
|
Driving Condition |
VDD 5 V |
|
Duty 1/4 |
|
|
Bias 1/3 |
|
|
Connector |
40 pins |
|
Display Technology |
STN |
|
Operating Temperature |
-30~80ºC |
|
Storage Temperature |
-40-90ºC |
|
Specification |
RoHS SGS |

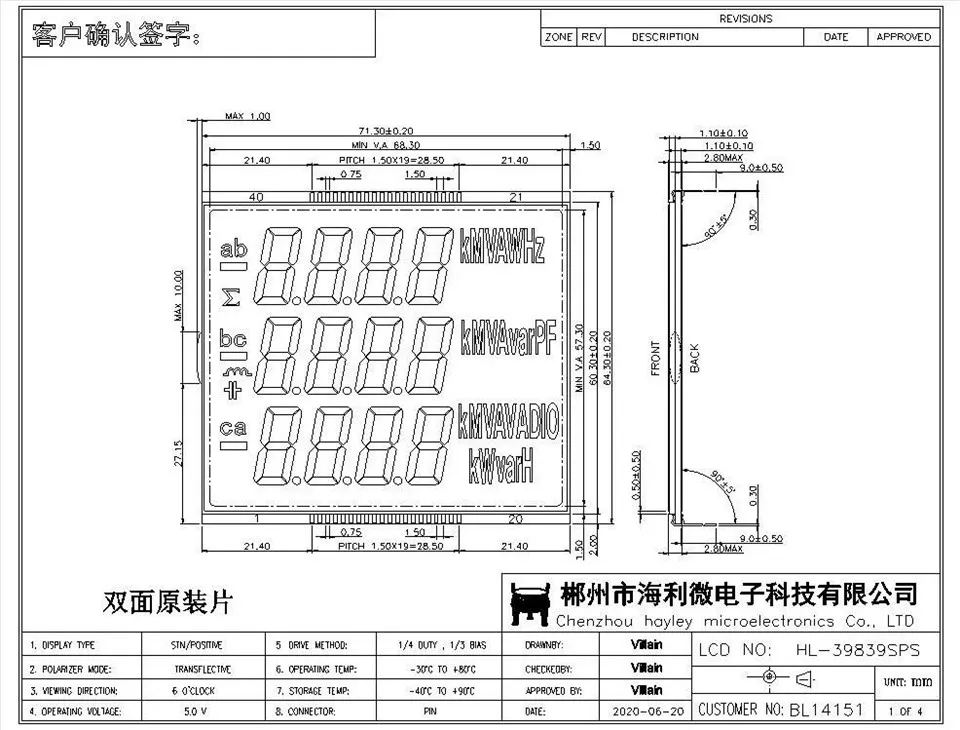

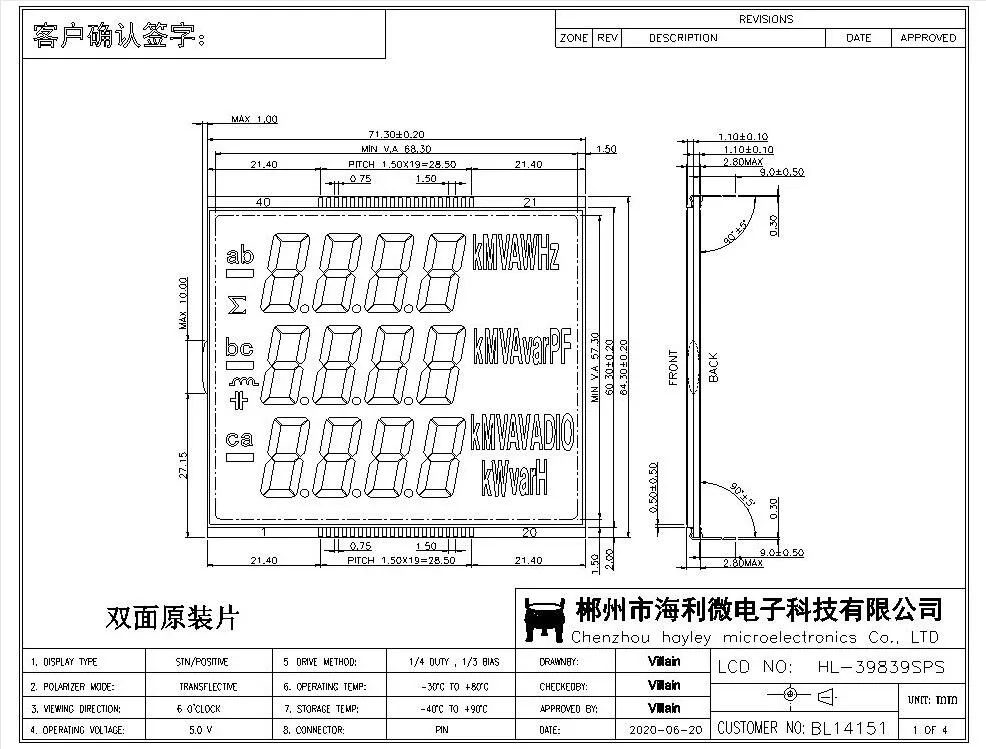

Monochrome 7 Segment lcd display for power meter design drawing
